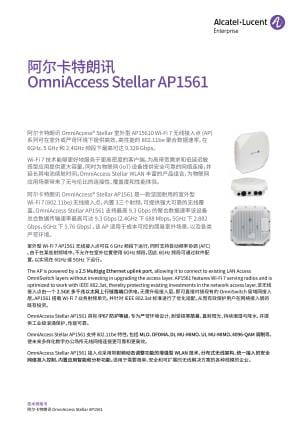

OmniAccess Stellar AP1561

The Alcatel-Lucent OmniAccess Stellar 1561 uses Wi-Fi 7, leveraging the new spectrum 6GHz band and existing 2.4GHz and 6GHz bands simultaneously. The new Wi-Fi 7 standard 902.11be helps many industries increase performance over their networks.

The OmniAccess Stellar AP1561 is IP67-rated for harsh outdoor environments enabling simple and cost-effective deployments.

The outdoor AP is ready for 6GHz operations, supporting Automated Frequency Coordination (AFC). In some RF domains, the 6GHz band is not permitted in outdoor locations, so the radio is software configurable to operate in 6GHz or 5GHz.

加入社区

访问论坛上的协作式对话
通过我们的资源了解更多我们的创新成果
阅读我们的专家撰写的博客文章

Join the Spacewalkers Community - Web CTA button

现在就加入我们

亮点

The Alcatel-Lucent OmniAccess Stellar AP1561 entry-level Wi-Fi 7 outdoor access point addresses the connectivity challenges for simple and cost-effective deployments.

Offers 2.4GHz/5GHz/6GHz radios serving the density high-capacity needs of next generation mobility and IoT-enabled networks.
Supports a maximum throughput of 9.328 Gbps.
Provides a 2.5 Multigig Ethernet uplink port.
Can be deployed in three different modes through a single version of software, simplifying IT operations.

特点

Supports 802.11be features, including MLO, OFDMA, DL MU-MIMO, UL MU-MIMO, 4096-QAM modulation, TWT, 512 Compressed Block Ack and more, for a highly reliable digital workplace
Provides enhanced security with WPA3
Supports 802.1ae MACsec in the uplink port
Supported by the OmniVista Network Management System, which provides two robust deployment models: cloud-based or on premises.
Can operate in a cluster architecture to provide simplified plug-and-play deployment for up to 255 APs
Supports finely tuned quality of service (QoS) parameters to differentiate and provide appropriate QoS for each application such as voice, video and desktop sharing
Uses RDA technology to automatically assign channels (DFS) and power settings (TPC) and ensure that access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN
