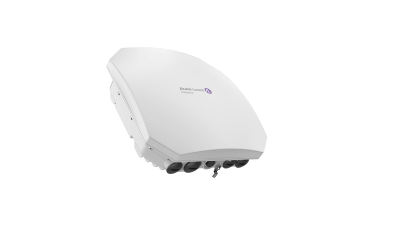

OmniAccess Stellar Access Point 1570 series
A Wi-Fi 7 outdoor mid-range access point that´s built to thrive in harsh environments, while delivering high efficiency and superior performance.
The Alcatel-Lucent OmniAccess Stellar 1570 series uses Wi-Fi 7. Wi-Fi 7 was developed on Wi-Fi 6E foundations and leverages the new spectrum available in the 6GHz band. It uses the existing 2.4GHz and 6GHz bands simultaneously. The new Wi-Fi 7 standard 902.11be helps many industries increase performance over their networks.
The OmniAccess Stellar AP1570 series is IP67-rated for harsh outdoor environments, including exposure to high and low temperatures, direct sunlight, persistent moisture and precipitation and offers industrial-grade surge protection.
This series of outdoor access points is ready for 6GHz operations, supporting Automated Frequency Coordination (AFC). In some RF domains, the 6GHz band is not permitted in outdoor locations, so the radio is software configurable to operate in 6GHz or 5GHz.
Destaques
The Alcatel-Lucent OmniAccess Stellar AP1570 mid-range Wi-Fi 7 outdoor access point addresses the connectivity challenges introduced by an increasing number of outdoor IoT devices.
- Offers 2.4GHz/5GHz/6GHz radios serving the density high-capacity needs of next generation mobility and IoT-enabled networks
- Includes a dedicated radio for scanning, improving network security and Wi-Fi quality
- Provides an integrated Bluetooth/Zigbee radio making it ideal for broad scope of IoT end points and applications like location analytics and building automation
- Supports a maximum throughput of 9.328 Gbps.
- Provides a 10GE Multigig Ethernet uplink combo port
- Can be deployed in three different modes through a single version of software, simplifying IT operations.
Características
- Supports 802.11be features, including MLO, OFDMA, DL MU-MIMO, UL MU-MIMO, 4096-QAM modulation, TWT, 512 Compressed Block Ack and more, for a highly reliable digital workplace
- Provides enhanced security with WPA3
- Supports 802.1ae MACsec in the uplink port
- Supported by the OmniVista Network Management System, which provides two robust deployment models: cloud-based or on premises.
- Can operate in a cluster architecture to provide simplified plug-and-play deployment for up to 255 APs
- Supports finely tuned quality of service (QoS) parameters to differentiate and provide appropriate QoS for each application such as voice, video and desktop sharing
- Uses RDA technology to automatically assign channels (DFS) and power settings (TPC) and ensure that access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN
Benefícios
Documentos de Apoio
-
Alcatel-Lucent OmniAccess Stellar AP1570
BaixarThe Alcatel-Lucent OmniAccess® Stellar outdoor AP1570 Wi-Fi 7 Access Point (AP) family provides high-efficiency, high-performance 802.11be aggregate data rates…
