OmniAccess Stellar Access Point 1561
A Wi-Fi 7 outdoor entry-level access point created to thrive in harsh environments in simple and cost-effective deployments.
The Alcatel-Lucent OmniAccess Stellar 1561 uses Wi-Fi 7, leveraging the new spectrum 6GHz band and existing 2.4GHz and 6GHz bands simultaneously. The new Wi-Fi 7 standard 902.11be helps many industries increase performance over their networks.
The OmniAccess Stellar AP1561 is IP67-rated for harsh outdoor environments enabling simple and cost-effective deployments.
The outdoor AP is ready for 6GHz operations, supporting Automated Frequency Coordination (AFC). In some RF domains, the 6GHz band is not permitted in outdoor locations, so the radio is software configurable to operate in 6GHz or 5GHz.
Highlights
The Alcatel-Lucent OmniAccess Stellar AP1561 entry-level Wi-Fi 7 outdoor access point addresses the connectivity challenges for simple and cost-effective deployments.
- Offers 2.4GHz/5GHz/6GHz radios serving the density high-capacity needs of next generation mobility and IoT-enabled networks.
- Supports a maximum throughput of 9.328 Gbps.
- Provides a 2.5 Multigig Ethernet uplink port.
- Can be deployed in three different modes through a single version of software, simplifying IT operations.
Features
- Supports 802.11be features, including MLO, OFDMA, DL MU-MIMO, UL MU-MIMO, 4096-QAM modulation, TWT, 512 Compressed Block Ack and more, for a highly reliable digital workplace
- Provides enhanced security with WPA3
- Supports 802.1ae MACsec in the uplink port
- Supported by the OmniVista Network Management System, which provides two robust deployment models: cloud-based or on premises.
- Can operate in a cluster architecture to provide simplified plug-and-play deployment for up to 255 APs
- Supports finely tuned quality of service (QoS) parameters to differentiate and provide appropriate QoS for each application such as voice, video and desktop sharing
- Uses RDA technology to automatically assign channels (DFS) and power settings (TPC) and ensure that access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN
Benefits
Supporting Documents
-
DAC & DAN Interactive Network and Communications Foldout
DownloadInteractive foldout for Network portfolio. Print version in the Digital Library.
-
OmniAccess Stellar Product Line Matrix Brochure - interacti…
DownloadView the entire OmniAccess Stellar WLAN product matrix with key features defined across product line.
-
Alcatel-Lucent OmniAccess Stellar AP1511
DownloadThe Alcatel-Lucent OmniAccess® Stellar AP1511 premium entry Wi-Fi 7 Access Point (AP), provides high-efficiency, high-performance 802.11be aggregate data rat…
-

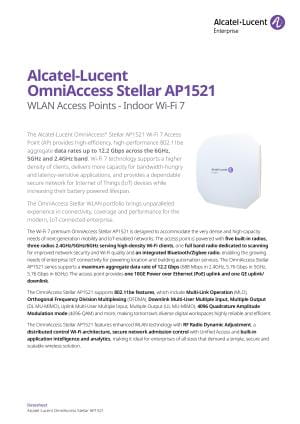

Alcatel-Lucent OmniAccess Stellar AP1521
